| Seashell Robotis ROV CR-01 |

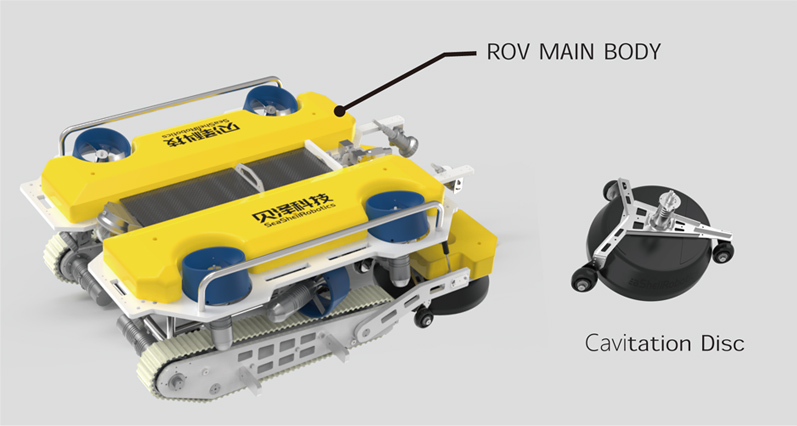

| Cavitation ROV Robot Introduction：Seashell Robotics CR-01 is an intelligent underwater cleaning and inspectionROV robot that uses cavitation jets to clean the hull surface without damagingthe hull paint while removing attached sea life. It can work stably onthe hull surface even in over 3knots of current. In most harbors, Seashell CR01 can beoperated 24 hours a day without being affected by wind,currents, waves, surges and other adverse weather conditions.Its Maximum cleaning Effiency can reach 1500sqm/h. |
| ROV Main body weight: 120KG Complete System: 850KG |
Cavitation Jet MAX Speed： 40m/min |
| Cleaning Width： 0.8m |
Work Depth： 0-50m |
| System Power： 35Kw |
Work Pressure： 19MPa |
Clean Efficiency：Sqm/h
Hard marine organisms(3CM) :300-400
Barnacles etc |
|
Seaweed and hard marine life(1.5CM)Light: 600-800
Seaweed:1500 |
|
 |

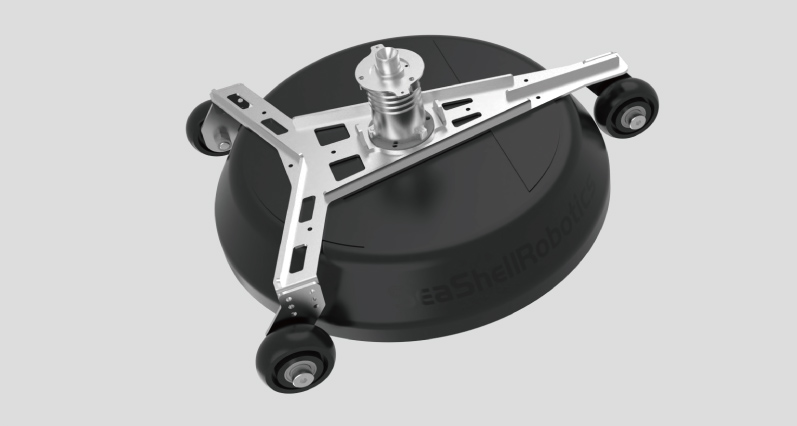

| Cavitation Jet Disc |
| Model：Cav.G-01A |
Rate flow：40L/Min |
| Weight：4Kg(N.w) |
Rate Pressure：20MPa |
| Size (mm)：280*186（Diameter*H） |
|
|
 |

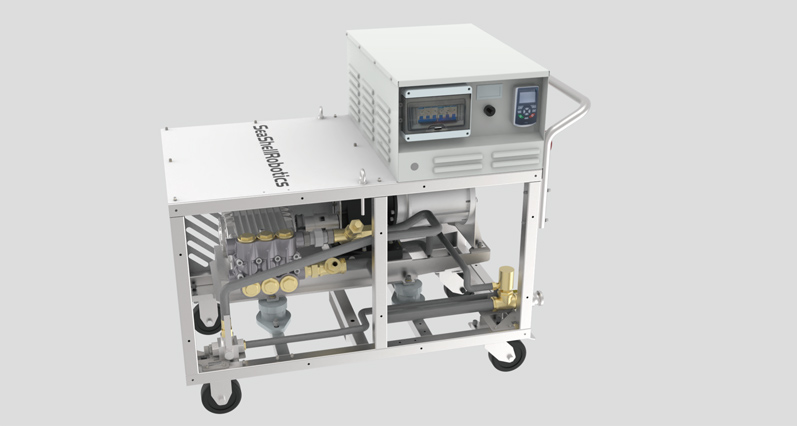

| Cavitation Jet PumpStation |
| Cavitation Pump Introduction：Cavitation jet equipment can provide efficient and non-destructive underwater cleaning forvarious underwater facilities such as ships, marine farm nets, offshore platforms and nuclearpower plants, etc. This set of pumping station adopts purely electric drive, is lightweight andeasy to carry, and can be equipped with a cavitation cleaning disk or a cavitation cleaning gun,and can also be used to drive other high-pressure operating componentsCavitation Jet PumpStation. |
| Model ：E-Cav.S-30kw-01A |
Weight：230Kg(N.W |
| Rate Power：30Kw |
Power Supply：Electric Generator |
| Rate Flow：80L/Min |
Mdia：Sea water |
| Rate Pressure：20MPa（changeable) |
Mobility way：Wheel |
| Device Size(mm)：1254*682*1060（L*W*H） |
| Note：The pump station can be used with two cavitation jet cleaning disks ortwo cavitation jet cleaning guns. |
|
 |

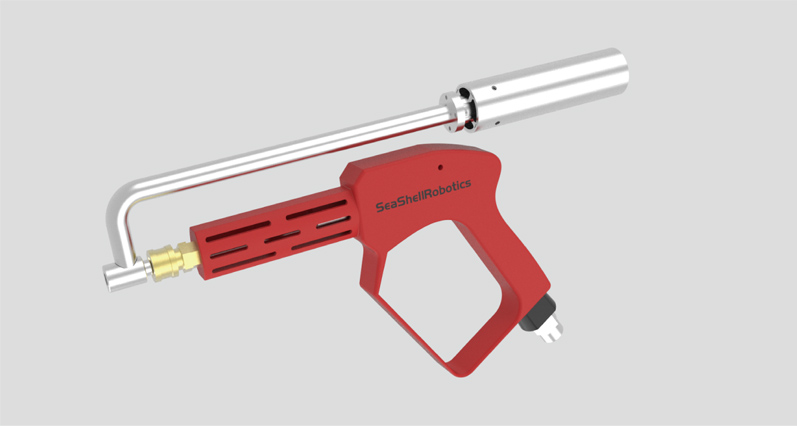

| Cavitation Cleaning Gun |
| Model：Cav.G-02A |
Rate Flow：40L/Min |
| Weight：1.5Kg(N.w) |
Rate Pressure：20MPa |
| Dimension(mm)：475*249*33.5（L*W*H） |
|
|
